HySecurity SlideDriver 40
HySecurity SlideDriver 40
- Nationwide shipping
- Freight | UPS | USpS
- Secure payments
***Custom Made; Call For Price and Availability***

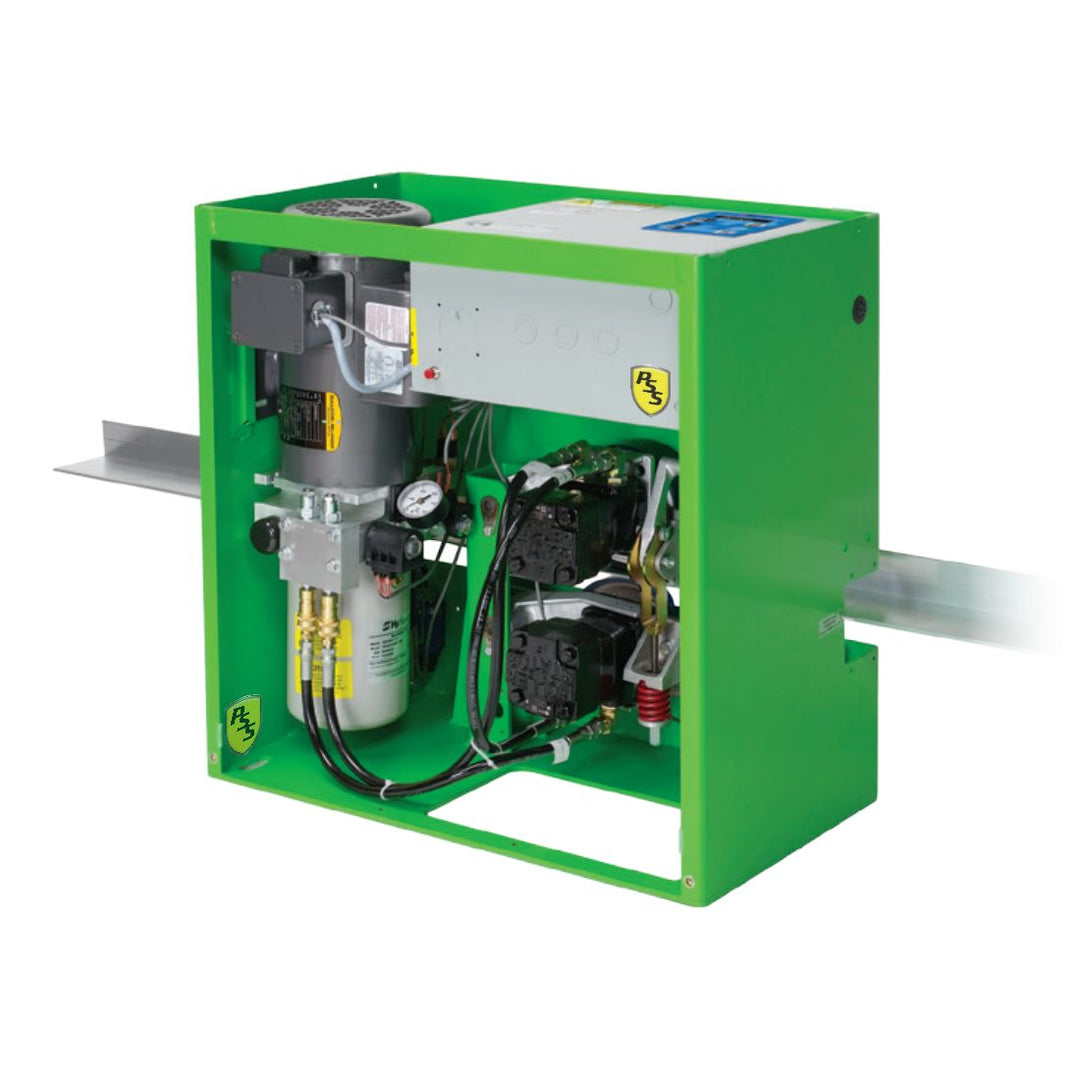

HySecurity SlideDriver 40
Cycle up to 4,000 lb gates of any length at 1 ft per second!
- 1 horsepower motor
- Can handle 4,000 lbs gates
- Powerful hydraulic motors rotate two compressed polyurethane AdvanceDrive™ wheels, smoothly cycling a rigid drive rail/gate.
- Field programmable to specific site requirements
- Extreme temperature latitude
- 115/208/230V 60 Hz
- 110/220V 50 Hz
SlideDriver Correctional
offers three high security lock options and a heavier, 10-gauge steel cover for added protection. HySecurity Correctional Facility gate operators come standard with all software needed to interface with common options and interlocks used at correctional facilities, such as gate position outputs, interlock capability for sally ports or sequenced gates, and multiple relays for an external solenoid lock or other
customizable options.
Highest security
Heavier, 10-gauge cover with a high security lock for added protection. Easy to program for sally port, external lock mechanisms, and gate position indicator. Available with an optional internal deadbolt gate lock.
| Duty Cycle | Continuous |
| Travel Speed | 1 ft/s (30 cm/s) |
| Gate Length | Limited only by weight |
| Gate Capacity | up to 4,000 lb (1,814 kg) |
| Operator HP | 1 hp |
| Drive Type | Hydraulic |
| Pull Force | 300 lb (136 kg) |
| UPS | See SlideDriver 40 UPS or optional 230V AC Power Supply w/HyInverter AC™ |
| Default Single Phase Voltages | 115/208/230V 60Hz; 110/220V 50Hz* |
| Optional Three Phase Voltages | 208/230/460V or 575V* 60Hz; 220/380/440V 50Hz* |
| Temperature Rating | -40° to 158° F (-40° to 70° C) No heater necessary |
| Communication | RS-232, RS-485; Ethernet/fiber using optional HyNet™ Gateway accessory |
| User Controls | Smart Touch Controller with 70+ configurable settings. Smart Touch keypad and 32 character, OLED display or a PC using S.T.A.R.T. software. |
| Relays | Three configurable user relays: one 30VDC, 3A solid state and two 250VAC, 10A electromechanical; Optional Hy8Relay™ for 8 additional relay outputs |
| App Class | Usage Class I, II, III, IV |
| Enclosure | n/a |
| Finish Type | Zinc plated with powder coating |
| Warranty | 5 year |
