Regular price $1,609.99
/
Shipping calculated at checkout.

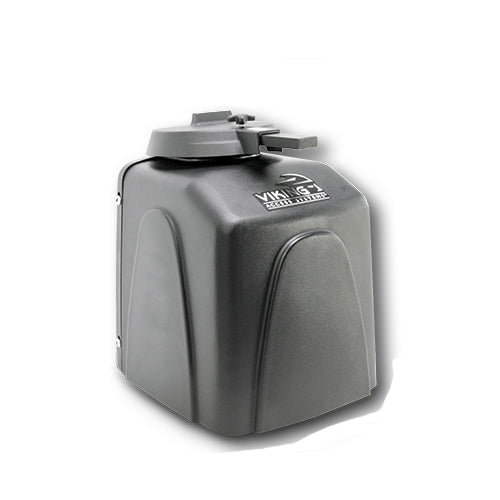

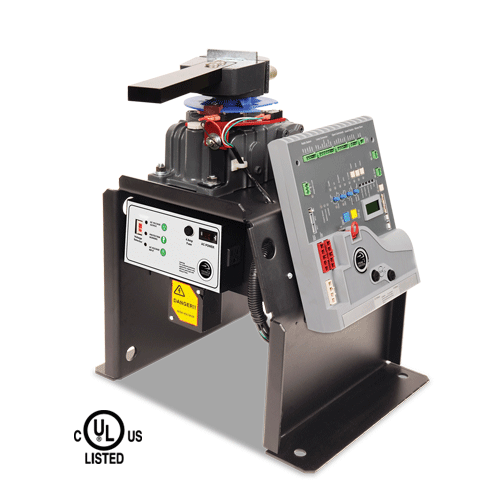

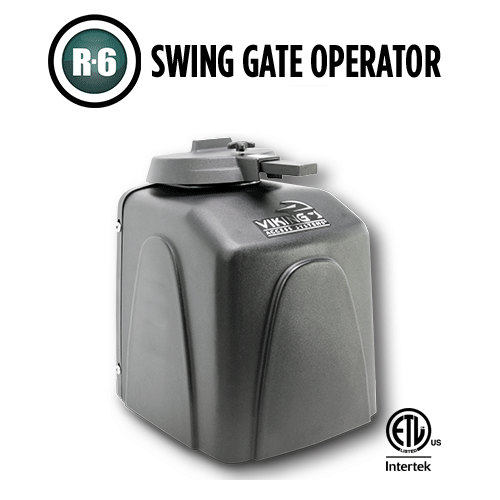

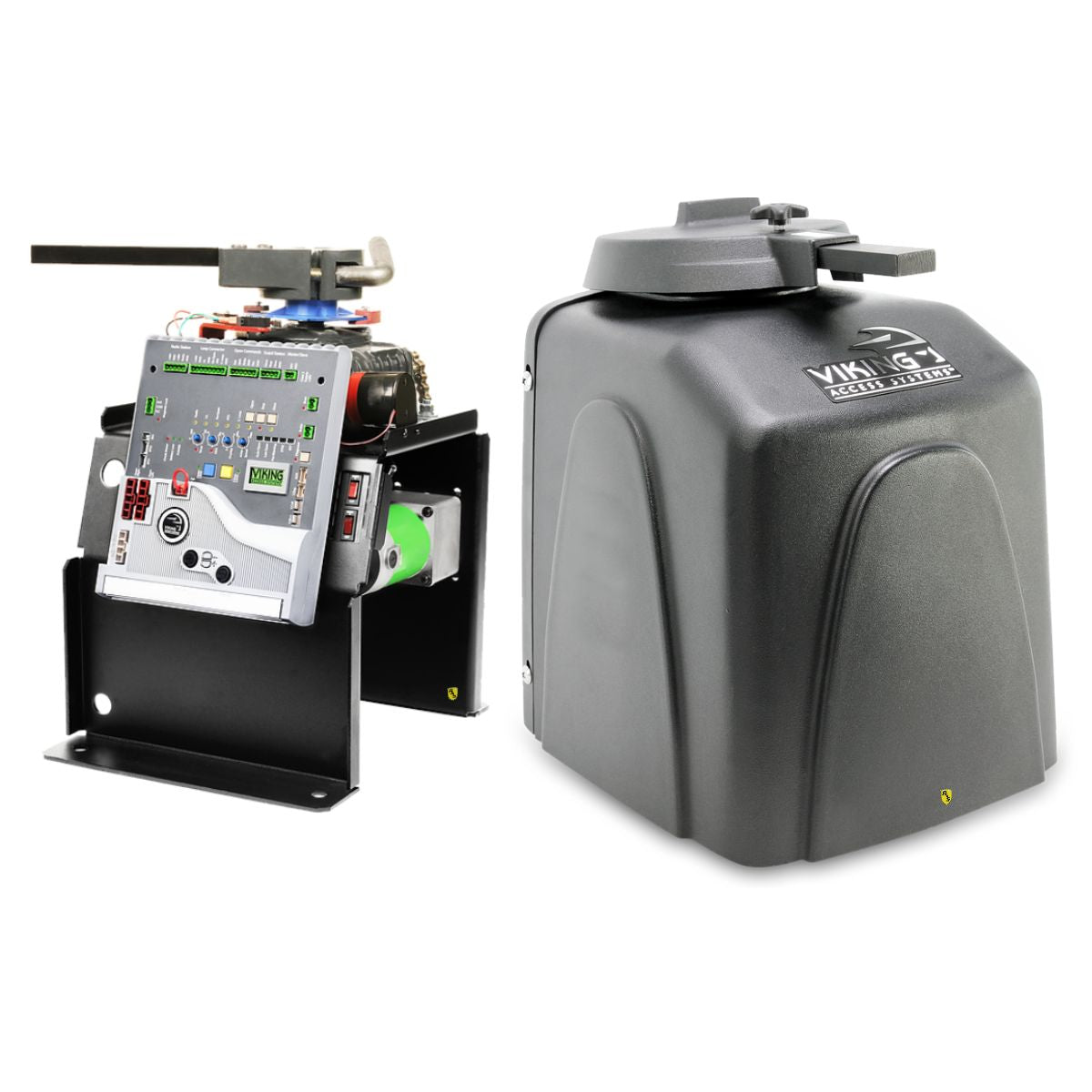

Viking R-6 NX UL Next Generation Swing Gate Opener (On Sale)

  • Max gate size: 14ft
  • Max gate weight: 600 lbs.
Some of the standard features include: 5 year warranty, UL 325 and 991 listing, fail-safe / fail-secure clutch mechanism, efficient direct-drive gear head motor, simple limit switch arrangement, 120/220 VAC single phase power source, built in three push button station, built in battery backup capable of 400 cycles in case of power failure, on-board lightning protection, and soft-start / soft-stop with intelligent obstruction detection.

SPECS:

  • Operational Voltage … 24 VDC with 1/2 H.P. Motor
  • Main Power Source … 120 / 220 VAC Single Phase
  • Battery … 7 AmpHr 12 VDC x 2
  • Max Gate Capacity … 600 lbs /14'
  • Max Operating Speed … 13-16 seconds per 90°
  • Battery Backup … 400 Full Cycles (600 lbs. / 12’ gate)
  • Maximum Gate Opening … 120˚
  • Operating Temperature … - 4° F to + 158° F




Viking R-6 NX UL Next Generation Swing Gate Opener (On Sale)

  • Max gate size: 14ft
  • Max gate weight: 600 lbs.
Some of the standard features include: 5 year warranty, UL 325 and 991 listing, fail-safe / fail-secure clutch mechanism, efficient direct-drive gear head motor, simple limit switch arrangement, 120/220 VAC single phase power source, built in three push button station, built in battery backup capable of 400 cycles in case of power failure, on-board lightning protection, and soft-start / soft-stop with intelligent obstruction detection.

SPECS:

  • Operational Voltage … 24 VDC with 1/2 H.P. Motor
  • Main Power Source … 120 / 220 VAC Single Phase
  • Battery … 7 AmpHr 12 VDC x 2
  • Max Gate Capacity … 600 lbs /14'
  • Max Operating Speed … 13-16 seconds per 90°
  • Battery Backup … 400 Full Cycles (600 lbs. / 12’ gate)
  • Maximum Gate Opening … 120˚
  • Operating Temperature … - 4° F to + 158° F
