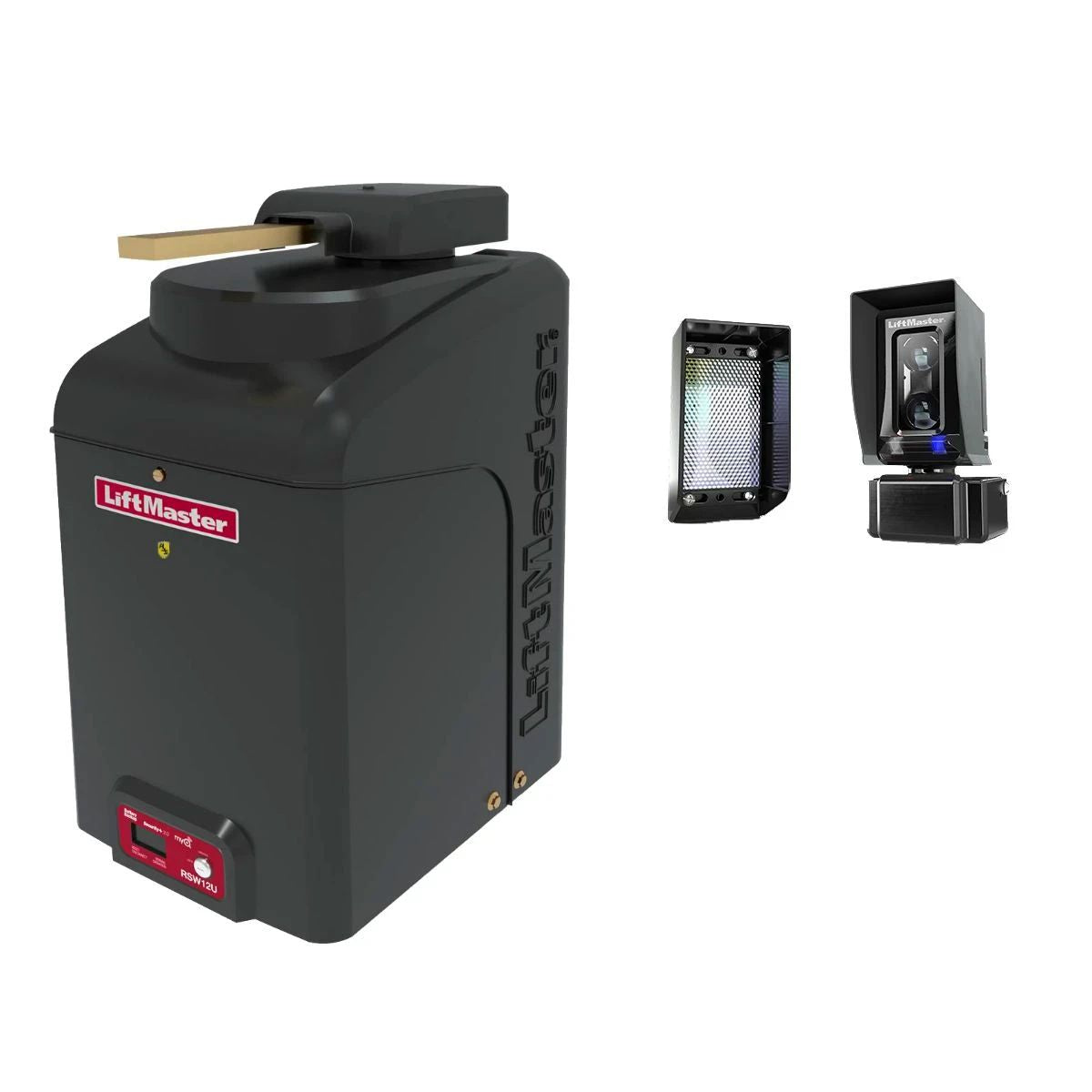

Liftmaster RSW12U Residential / Light Commercial DC Swing Gate Operator (On Sale)

Liftmaster RSW12U Residential / Light Commercial DC Swing Gate Operator (On Sale)
Liftmaster RSW12U Residential / Light Commercial DC Swing Gate Operator (On Sale)
Liftmaster RSW12U Residential / Light Commercial DC Swing Gate Operator (On Sale)
Liftmaster RSW12U Residential / Light Commercial DC Swing Gate Operator (On Sale)

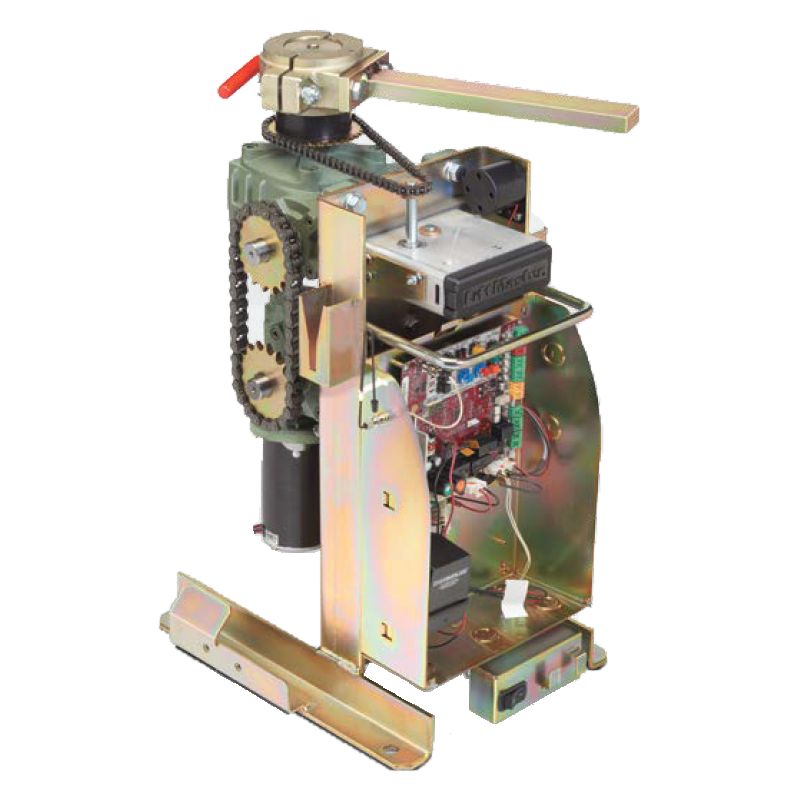

liftmaster rsw12u with no motor cover. Picture by pssstore.net

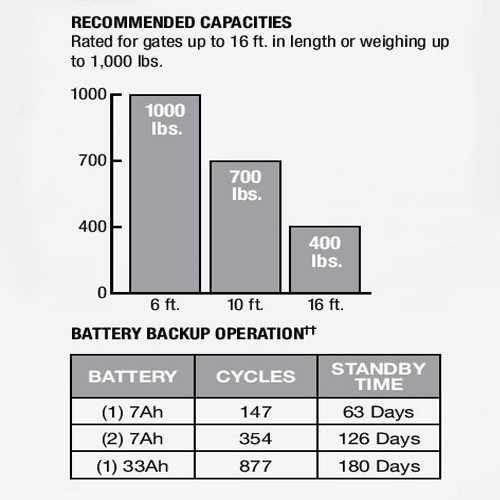

Liftmaster Swing Gate Opener - Liftmaster RSW12U residential/commercial dc swing gate operator - Liftmaster RSW12U Swing Gate Opener - Liftmaster RSW12U Capacities chart

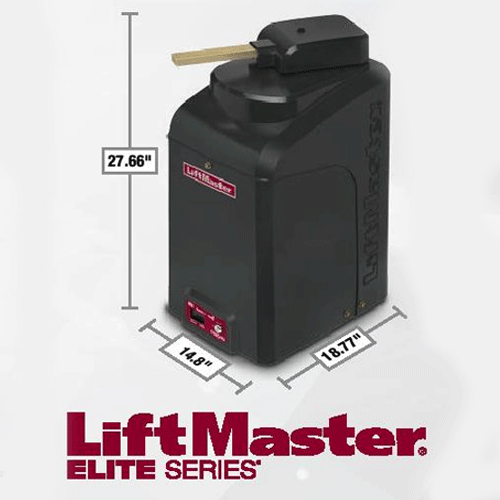

Liftmaster Swing Gate Opener - Liftmaster RSW12U residential/commercial dc swing gate operator - Liftmaster RSW12U Swing Gate Opener - Liftmaster RSW12U Motor Construction - Weights and dimensions
Liftmaster Swing Gate Opener - Liftmaster RSW12U residential/commercial dc swing gate operator - Liftmaster RSW12U Swing Gate Opener

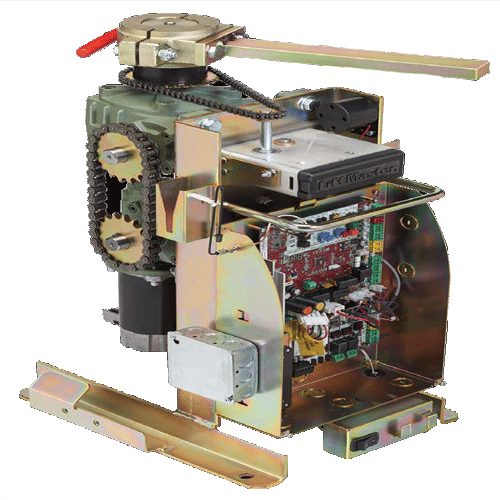

Liftmaster Swing Gate Opener - Liftmaster RSW12U residential/commercial dc swing gate operator - Liftmaster RSW12U Swing Gate Opener - Liftmaster RSW12U Motor Construction

Liftmaster RSW12U Residential / Light Commercial DC Swing Gate Operator (On Sale)

  • Nationwide shipping
  • Freight | UPS | USpS
  • Secure payments
Regular price $2,129.99
/
Shipping calculated at checkout.

Liftmaster RSW12UL Slide Gate Opener (On Sale)

  • Max gate size: 16ft
  • Max gate weight: 1,000 lbs.
  • 1/2 horsepower equivalent

Liftmaster RSW12UL Package Includes:

1 - RSW12UL motor with circuit board
1 - Built in radio receiver
1 - Monitored Safety Device (Liftmaster LMRRUL Photo Eye)

Liftmaster RSW12UL Residential / Light Commercial DC Swing Gate Operator

The Liftmaster RSW-12UL residential swing gate opener is designed for residential and light commercial locations with low traffic volume passing through the gate.  Liftmaster swing gate openers have many features that set them apart from other manufactures in the industry.  These features include: P3 Motor, heavy-duty commercial
gear-driven transmission, soft start/stop operation,  wireless dual-gate communication, fire department compliance, emergency release, surge suppression, quick close, and anti-tailgate.  The Liftmaster RSW12-UL swing gate operator is designed for "Heavy residential gates and light commercial applications. Powerful DC motor provides smooth, quiet operation".  The Liftmaster RSW12U swing gate opener also has a 3 year warranty.

Features:

  • LED DIAGNOSTIC DISPLAY
  • SOLAR-READY ULTRA-RELIABLE SYSTEM
  • BI-PART DELAY
  • SYNCHRONIZED CLOSE
  • HOMELINK® COMPATIBLE
  • SECURITY+ 2.0® ON-BOARD RADIO RECEIVER

Specifications:

  • Power: 12VDC or Solar Powered
  • ACCESSORY POWER: 12VDC 500mA output. Switched and unswitched power
  • MONITORED SAFETY INPUTS: 3 Main Board, 3 Optional Expansion Board
  • TEMPERATURE SPECS: Without Heater: -4°F (-20°C) to 140°F (60°C).  With Optional Heater (HTR): -40°F (-40°C) to 140°F (60°C)
  • UL USAGE AND CLASSIFICATION: I, II, III, and IV
    GATE TRAVEL SPEED: 90-degree opening in 13-15 seconds.

CONSTRUCTION:

  • P3 MOTOR: 12VDC continuous-duty motor
  • OPERATOR DUTY RATING: 250 cycles per day
  • CHASSIS: Constructed with 1/4" gold zinc-plated steel for rust prevention
  • WORM GEAR REDUCTION: Two commercial oil bath gearboxes with 900:1 worm gear reduction
  • COVER: High-density, UV-resistant polycarbonate 2-piece cover for excellent heat and corrosion resistance
  • OPERATOR WEIGHT: 180 lbs
  • RECOMMENDED CAPACITIES: Rated for gates up to 16 ft. in length or weighing up to 1,000 lbs.

Limited Warranty (by Liftmaster):

  • 3 years

Liftmaster RSW12UL Slide Gate Opener (On Sale)

  • Max gate size: 16ft
  • Max gate weight: 1,000 lbs.
  • 1/2 horsepower equivalent

Liftmaster RSW12UL Package Includes:

1 - RSW12UL motor with circuit board
1 - Built in radio receiver
1 - Monitored Safety Device (Liftmaster LMRRUL Photo Eye)

Liftmaster RSW12UL Residential / Light Commercial DC Swing Gate Operator

The Liftmaster RSW-12UL residential swing gate opener is designed for residential and light commercial locations with low traffic volume passing through the gate.  Liftmaster swing gate openers have many features that set them apart from other manufactures in the industry.  These features include: P3 Motor, heavy-duty commercial
gear-driven transmission, soft start/stop operation,  wireless dual-gate communication, fire department compliance, emergency release, surge suppression, quick close, and anti-tailgate.  The Liftmaster RSW12-UL swing gate operator is designed for "Heavy residential gates and light commercial applications. Powerful DC motor provides smooth, quiet operation".  The Liftmaster RSW12U swing gate opener also has a 3 year warranty.

Features:

  • LED DIAGNOSTIC DISPLAY
  • SOLAR-READY ULTRA-RELIABLE SYSTEM
  • BI-PART DELAY
  • SYNCHRONIZED CLOSE
  • HOMELINK® COMPATIBLE
  • SECURITY+ 2.0® ON-BOARD RADIO RECEIVER

Specifications:

  • Power: 12VDC or Solar Powered
  • ACCESSORY POWER: 12VDC 500mA output. Switched and unswitched power
  • MONITORED SAFETY INPUTS: 3 Main Board, 3 Optional Expansion Board
  • TEMPERATURE SPECS: Without Heater: -4°F (-20°C) to 140°F (60°C).  With Optional Heater (HTR): -40°F (-40°C) to 140°F (60°C)
  • UL USAGE AND CLASSIFICATION: I, II, III, and IV
    GATE TRAVEL SPEED: 90-degree opening in 13-15 seconds.

CONSTRUCTION:

  • P3 MOTOR: 12VDC continuous-duty motor
  • OPERATOR DUTY RATING: 250 cycles per day
  • CHASSIS: Constructed with 1/4" gold zinc-plated steel for rust prevention
  • WORM GEAR REDUCTION: Two commercial oil bath gearboxes with 900:1 worm gear reduction
  • COVER: High-density, UV-resistant polycarbonate 2-piece cover for excellent heat and corrosion resistance
  • OPERATOR WEIGHT: 180 lbs
  • RECOMMENDED CAPACITIES: Rated for gates up to 16 ft. in length or weighing up to 1,000 lbs.

Limited Warranty (by Liftmaster):

  • 3 years
