Eagle I Residential Slide Gate Opener
Eagle-I 1/2 HP Residential Slide Gate Operator
Buyer Beware!
Eagle operators are not UL compliant and cannot be sold at this time
***Now Includes an Eagle photoeye & receiver (no remotes)**

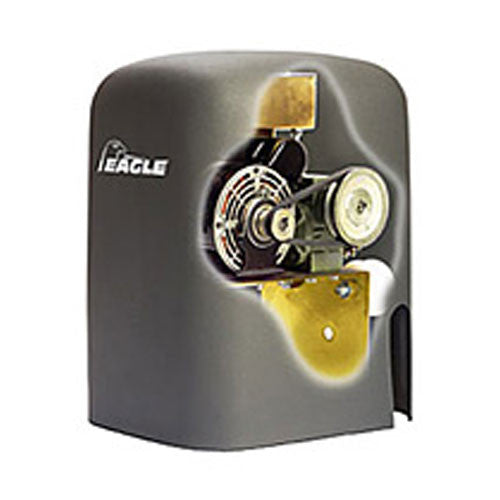

The Eagle Manufactured with the same quality and engineering as our larger commercial and industrial models, the Eagle-I slide gate operator is designed for residential applications and is built for gates up to 18 feet or 300lbs. 20 feet of nickel plated chain and a no weld chain kit are standard and help for easy installation. This model is equipped with a 1/2 horse power motor continuous duty AC motor and uses the state of the art AC mini control board, backed of course by our best in class 5 year warranty. Residential access control is made easy with this fail secure model.
Specs
Standard Features
- 2-Wire Master/Slave with Global Inputs
- Open/Close Delay
- Motor Brake
- 24 VDC Output for MAG Lock
- 24 VAC Auxiliary Power Output
- Auto-Close Timer (1-60 sec.)
Operating Classification
- Class I

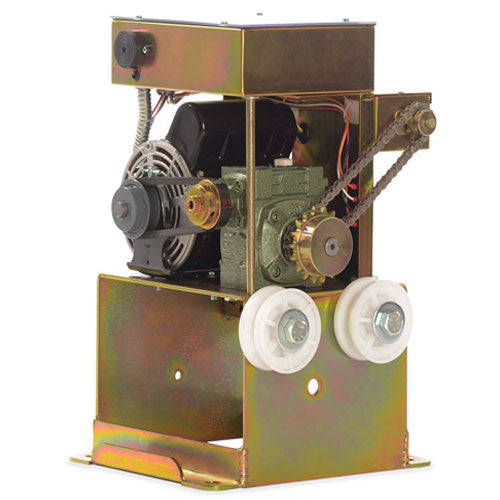

Mechanical
- Drive Chain: #41 Nickel Plated (20)
- Gear Reducer: Size 40

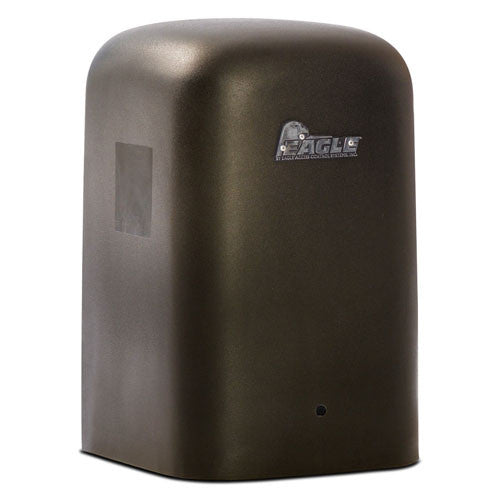

- Cover: All-Weather/UV Resistant (HDPE)
- Chassis: Zinc Plated Steel to Resist Corrosion
- Power Disconnect (1/2 HP)
Manual Release

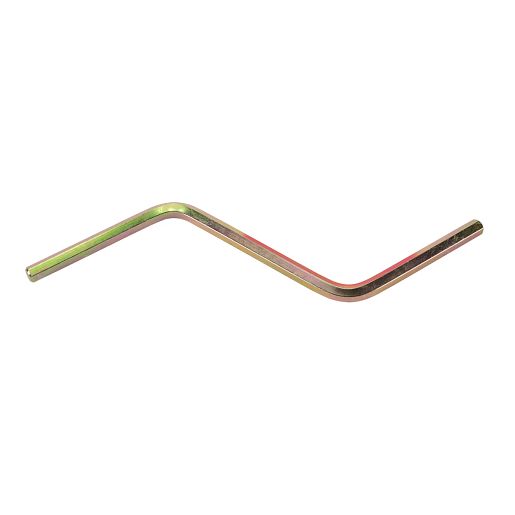

- Fail-Secure(FSC): Use Crank to Open
Power
- 1/2 HP Continuous Duty AC
- 115 VAC @ 60 HZ 5.2 AMP
- No-Weld Chain Brackets
- UHMW Silent Idler Wheels
- Audio Alarm
- Pre-Wired Receiver Terminal
Gate Capacity & Operation
- Maximum Gate: 18 ft & 300 lbs
- 12” per second travel
- Rated Continuous Duty
Dimensions
- 20″ (h) x 15″ (w) x 12″ (d)
Installation Instructions
- Easy to follow instructions. Available in Spanish. Las instrucciones de la instalación disponibles en Español.
