Viking F1 NX UL Swing Gate Opener

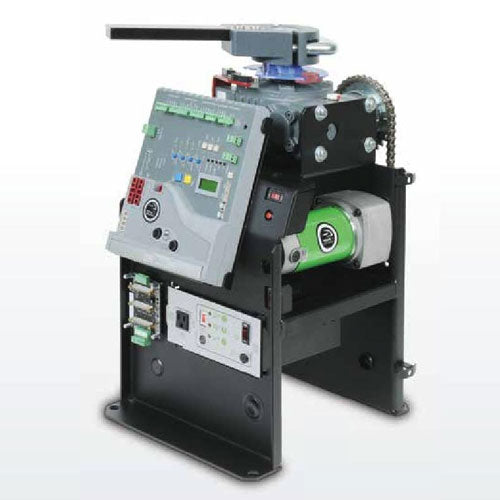

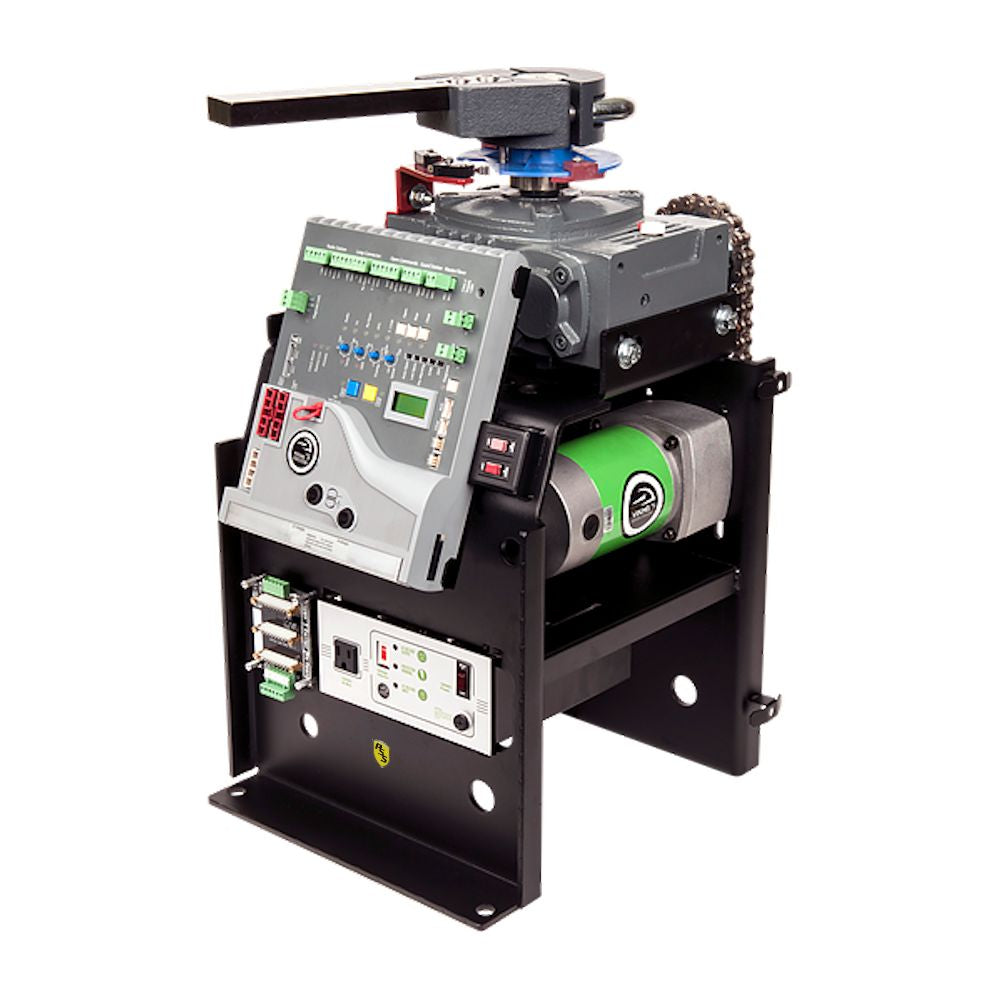

Viking F1 NX UL Swing Gate Opener without a cover

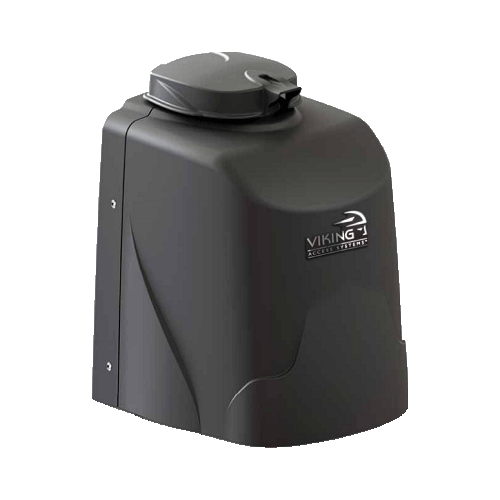

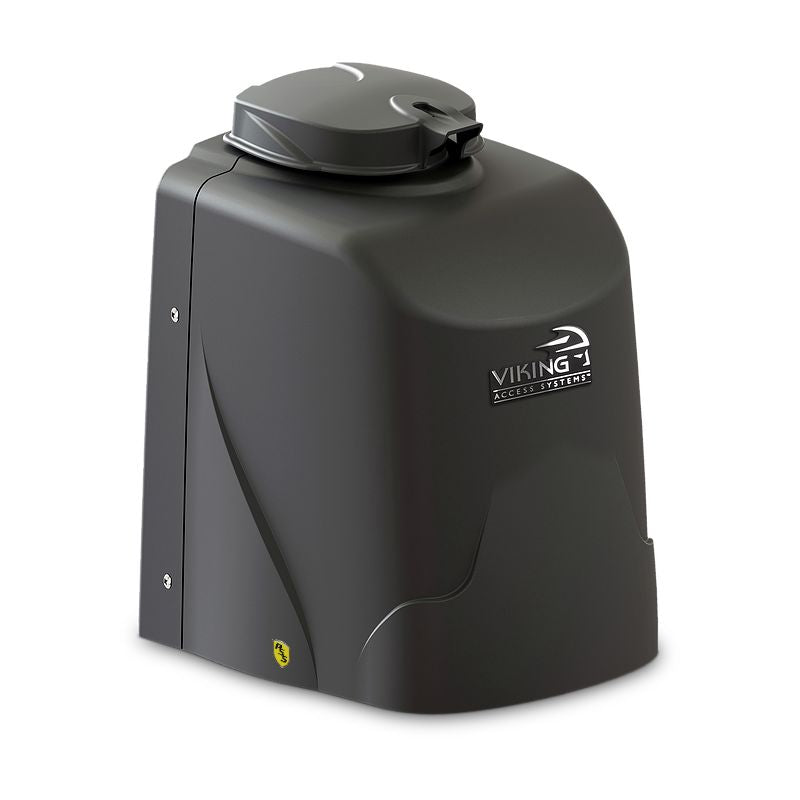

Viking F1 NX UL Swing Gate Opener with a cover
Viking F1 NX UL Swing Gate Opener
Viking F1 NX UL Swing Gate Opener
Viking F1 NX UL Swing Gate Opener
Viking Gate Openers - Viking F1
Viking Gate Openers - Viking F1

Viking F1 NX UL Swing Gate Opener

  • Nationwide shipping
  • Freight | UPS | USpS
  • Secure payments
Regular price $2,199.99
/
Shipping calculated at checkout.

Viking F-1 NX UL Swing Gate Opener

  • Max gate size: 16ft*
  • Max gate weight: 1,500 lbs*

The Viking F-1 NX UL Swing Gate Opener is one of the industries best swing gate operators.  It has features that include battery backup, heaters, and lightning protection.  This gate operator has a max capacity of 1200 pounds for a gate that is 12 feet long, or a gate that is 800 pounds and 16 feet long.  The Viking F1 Swing Gate Opener comes with a 7 year residential and a 5 year commercial warranty.  If you have any questions on the Viking F1 Swing Gate Operator please give us a call at 800 676 4909

Features:

  • Compatible with Viking wireless products
  • Battery Backup
  • Lightning protection - up to 20,000V
  • Multi layer corrosion protection
  • Integrated heater
  • Solar smart
  • Diagnostic display
  • Warranty - 7 year residential, 5 year commercial

Specs:

  • Operational Voltage … 24 VDC with 1/2 H.P. Motor
  • Main Power Source … 120 / 220 VAC Single Phase
  • Battery … 7 AmpHr 12 VDC x 2
  • Max Gate Capacity … 1200 lbs /12' or 800 lbs /16'
  • Max Operating Speed … 13-16 seconds per 90°
  • Battery Backup … 300 Full Cycles (600 lbs. / 12' gate)
  • Maximum Operational Duty … Continuous Cycle
  • Operating Temperature … - 4° F to + 158° F



Viking F-1 NX UL Swing Gate Opener

  • Max gate size: 16ft*
  • Max gate weight: 1,500 lbs*

The Viking F-1 NX UL Swing Gate Opener is one of the industries best swing gate operators.  It has features that include battery backup, heaters, and lightning protection.  This gate operator has a max capacity of 1200 pounds for a gate that is 12 feet long, or a gate that is 800 pounds and 16 feet long.  The Viking F1 Swing Gate Opener comes with a 7 year residential and a 5 year commercial warranty.  If you have any questions on the Viking F1 Swing Gate Operator please give us a call at 800 676 4909

Features:

  • Compatible with Viking wireless products
  • Battery Backup
  • Lightning protection - up to 20,000V
  • Multi layer corrosion protection
  • Integrated heater
  • Solar smart
  • Diagnostic display
  • Warranty - 7 year residential, 5 year commercial

Specs:

  • Operational Voltage … 24 VDC with 1/2 H.P. Motor
  • Main Power Source … 120 / 220 VAC Single Phase
  • Battery … 7 AmpHr 12 VDC x 2
  • Max Gate Capacity … 1200 lbs /12' or 800 lbs /16'
  • Max Operating Speed … 13-16 seconds per 90°
  • Battery Backup … 300 Full Cycles (600 lbs. / 12' gate)
  • Maximum Operational Duty … Continuous Cycle
  • Operating Temperature … - 4° F to + 158° F
