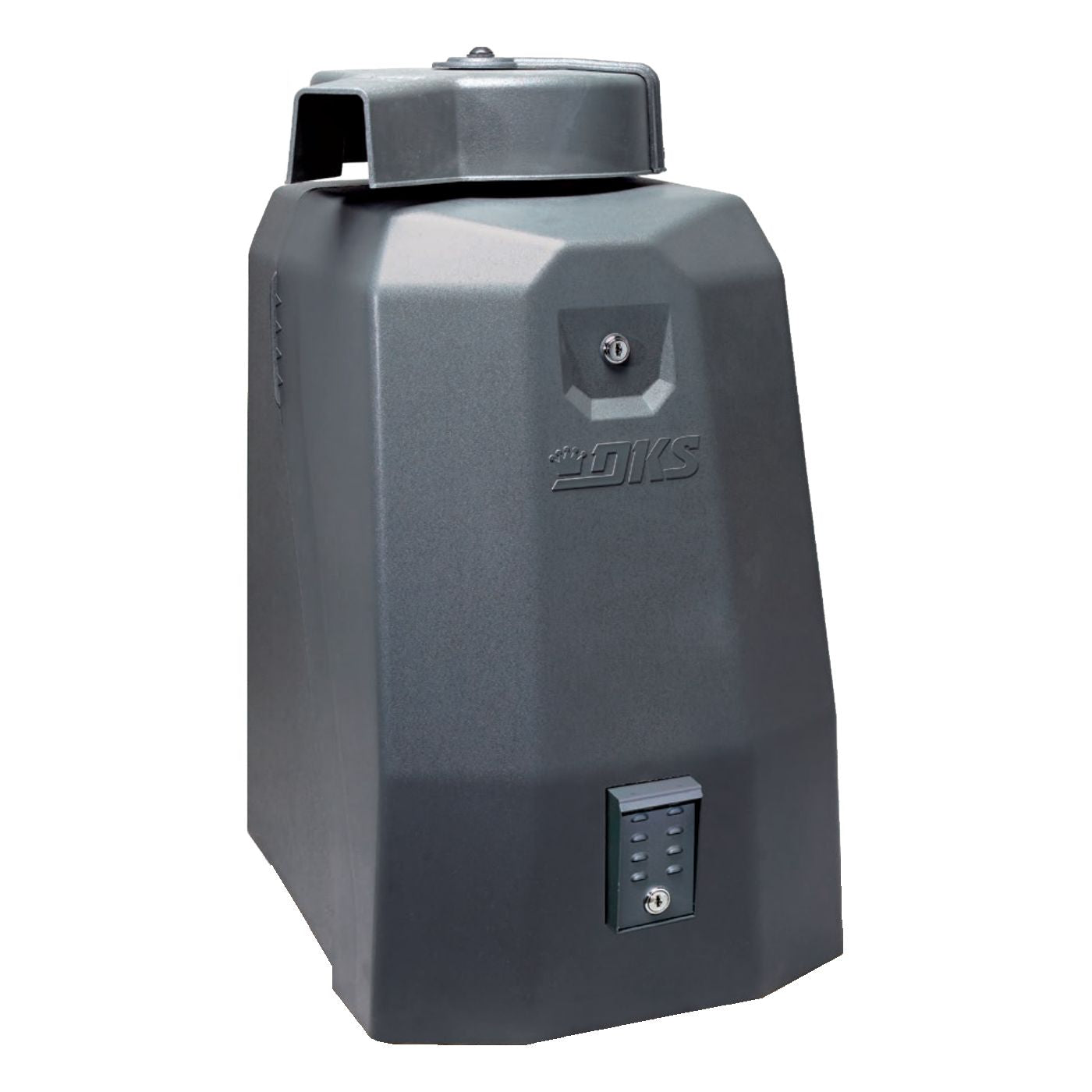

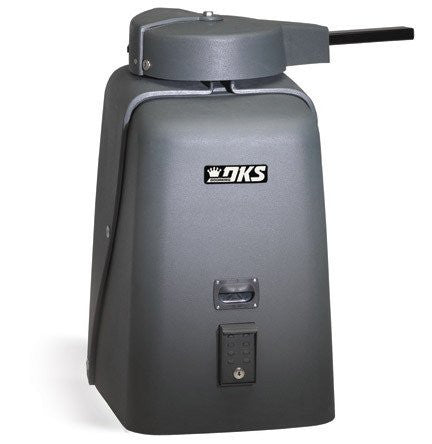

DoorKing 6500-385 Secondary Swing Gate Opener

Doorking Swing Gate Opener - Doorking 6500-081 Secondary Swing Gate Opener
DoorKing 6500-081 Secondary Swing Gate Opener
DoorKing 6500-081 Secondary Swing Gate Opener
DoorKing 6500-081 Secondary Swing Gate Opener

DoorKing 6500-385 Secondary Swing Gate Opener

  • Nationwide shipping
  • Freight | UPS | USpS
  • Secure payments
Regular price $3,926.80 Sale price $2,379.99 Save 39%
/
Shipping calculated at checkout.

Model 6500-385 Secondary Vehicular Swing Gate Operator (1hp)



Must have the 6500-384 primary operator to function

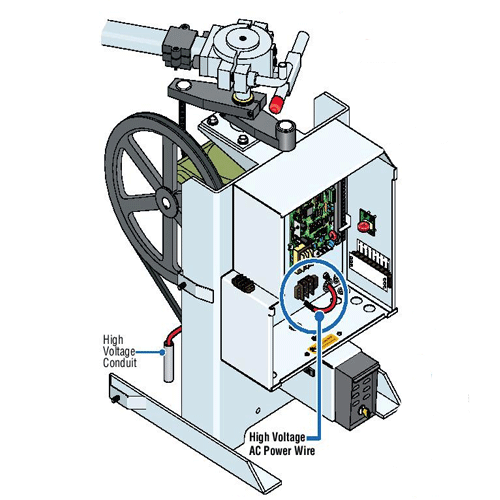

The DoorKing 6500-385 swing gate operators are designed to operate vehicular swing gates in residential, commercial and industrial applications for both single and bi-parting gates. The unique design of the DKS 6500-385 swing gate opener allows for easy access to the electronics and mechanical areas of the operator without ever having to remove the gate arm. This simplifies installation and maintenance. The electronic magnetic limits will never wear out or break and they are easily adjusted. The solid steel frame and belt driven gear box make this operator one of the quietest on the market today.

Features:

  • Adjustable, no maintenance magnetic limits
  • Overlap feature for bi-parting swing gate operation
  • Simple connection for secondary operator in bi-parting applications
  • Selectable shadow/reverse loop function
  • Magnetic lock power provided
  • Ports for plug-in loop detectors
  • Three 115 VAC convenience outlets
  • Gate tracker reporting output
  • Programming switches
  • Built-in reset switch
  • Built-in power On/Off switch.

Specifications:

  • Maximum gate width 22-ft. (1 HP)
  • Maximum gate weight 800 pounds* (1 HP)
  • (*Assumes gate swings level and is in good condition with properly adjusted hardware)
  • Other external factors may affect the performance of the gate operator.)
  • Swings gate 90 degrees in approximately 12-14 seconds
  • 1 HP continuous-duty motor
  • 115, 230*, 460* VAC. (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
  • Class I, II, III and IV applications
  • Compliant with UL 325 and 991
  • ETL Listed.
  • (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment prevention devices are required to be installed with this gate operator.

Options:

  • Primary / secondary connection cable
  • Plug-in loop detectors.
  • Heater kit for cold environments.
  • Surge suppressors.
  • Uphill arm pivot assembly and torsion rod assembly

Model 6500-385 Secondary Vehicular Swing Gate Operator (1hp)



Must have the 6500-384 primary operator to function

The DoorKing 6500-385 swing gate operators are designed to operate vehicular swing gates in residential, commercial and industrial applications for both single and bi-parting gates. The unique design of the DKS 6500-385 swing gate opener allows for easy access to the electronics and mechanical areas of the operator without ever having to remove the gate arm. This simplifies installation and maintenance. The electronic magnetic limits will never wear out or break and they are easily adjusted. The solid steel frame and belt driven gear box make this operator one of the quietest on the market today.

Features:

  • Adjustable, no maintenance magnetic limits
  • Overlap feature for bi-parting swing gate operation
  • Simple connection for secondary operator in bi-parting applications
  • Selectable shadow/reverse loop function
  • Magnetic lock power provided
  • Ports for plug-in loop detectors
  • Three 115 VAC convenience outlets
  • Gate tracker reporting output
  • Programming switches
  • Built-in reset switch
  • Built-in power On/Off switch.

Specifications:

  • Maximum gate width 22-ft. (1 HP)
  • Maximum gate weight 800 pounds* (1 HP)
  • (*Assumes gate swings level and is in good condition with properly adjusted hardware)
  • Other external factors may affect the performance of the gate operator.)
  • Swings gate 90 degrees in approximately 12-14 seconds
  • 1 HP continuous-duty motor
  • 115, 230*, 460* VAC. (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
  • Class I, II, III and IV applications
  • Compliant with UL 325 and 991
  • ETL Listed.
  • (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment prevention devices are required to be installed with this gate operator.

Options:

  • Primary / secondary connection cable
  • Plug-in loop detectors.
  • Heater kit for cold environments.
  • Surge suppressors.
  • Uphill arm pivot assembly and torsion rod assembly
