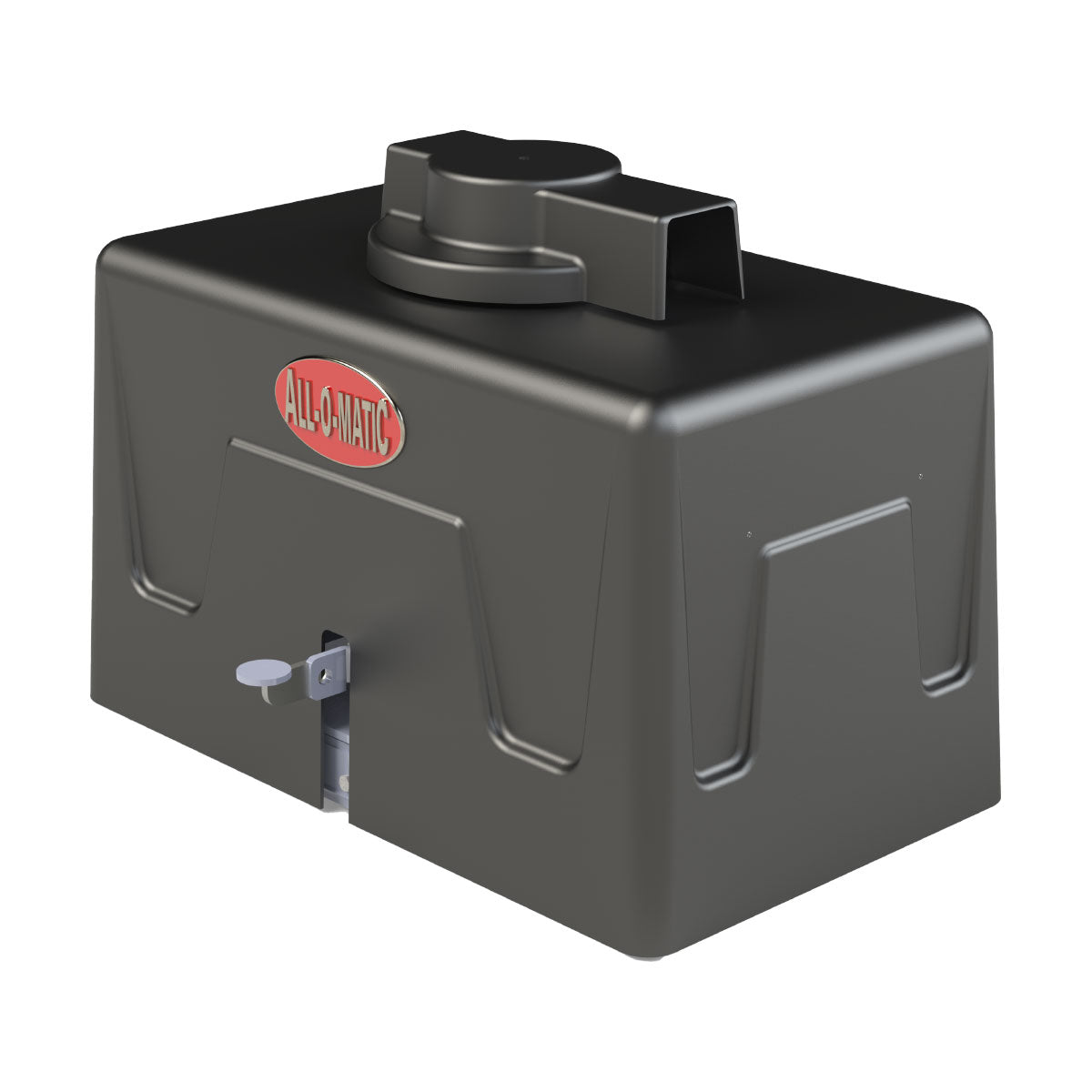

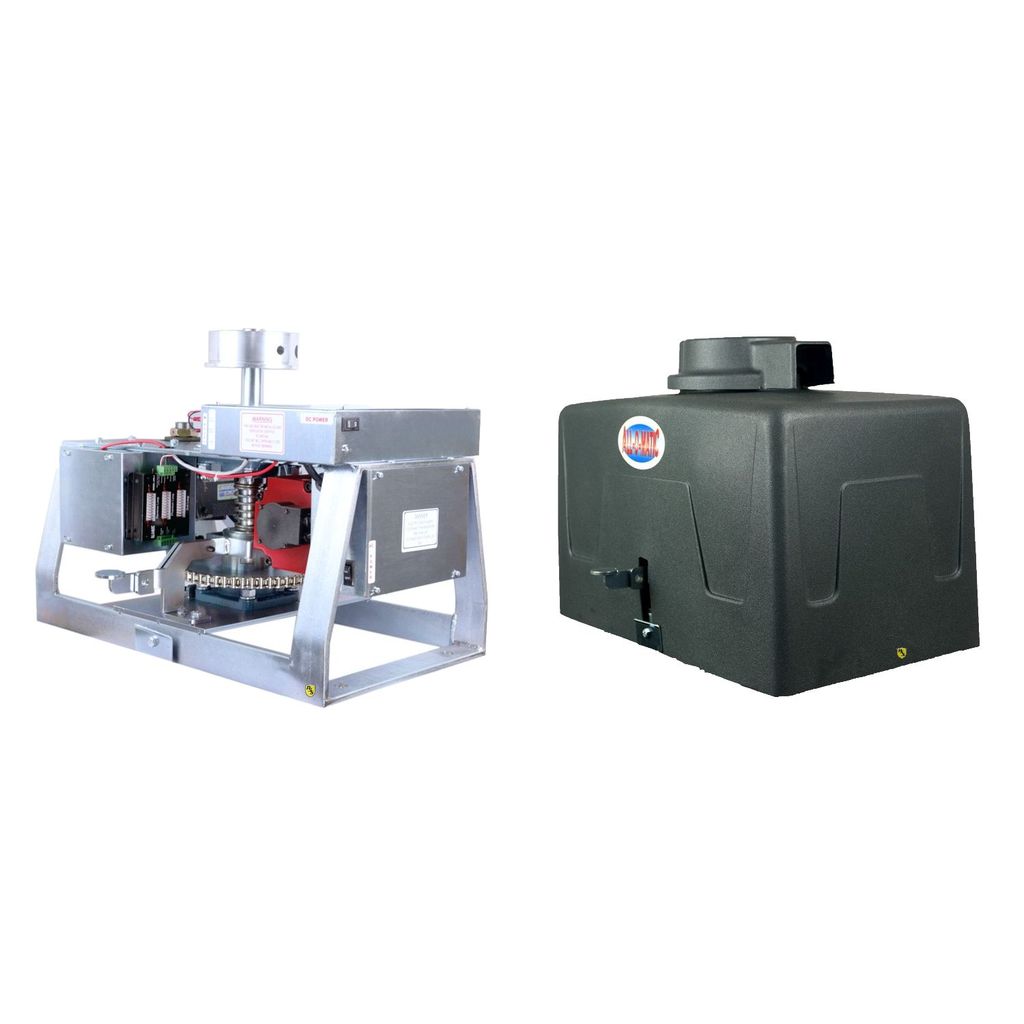

All-O-Matic SW 350 DC Swing Gate Opener
- Arm included
- Requires monitored safety device to activate
- Max gate size: 22ft
- Max gate weight: 2,500 lbs.
- 1 horsepower motor
The Allomatic SW 350 DC Swing Gate Operator is designed to be installed in heavy traffic commercial and industrial locations, also it is made to operate in extreme weather conditions. The SW-350 DC Swing Gate Opener is available in both 1HP & 1/2 HP options and can move a gate that is up to 2,000 or 2,500 lbs. The All-O-Matic Swing Gate Openers have many features that help set them apart from other operators in the industry. Some of these features are programmable relay and leaf delay, slow start/stop algorithm, and solar power capability. The integrated battery backup offers up to two weeks of uninterrupted operation in the event of a power outage. The brushless DC motors are smooth and quiet but are powerful and durable and require zero maintenance. This operator has a foot pedal for emergency release, and a loop rack built in. The Allomatic SW-350 DC Swing Gate Operator has a 5 year commercial, and 7 year residential warranties.
2016 UL 325 & UL 991 Compliant
Limited Warranty: 7 Year Residential, 5 Year Commercial

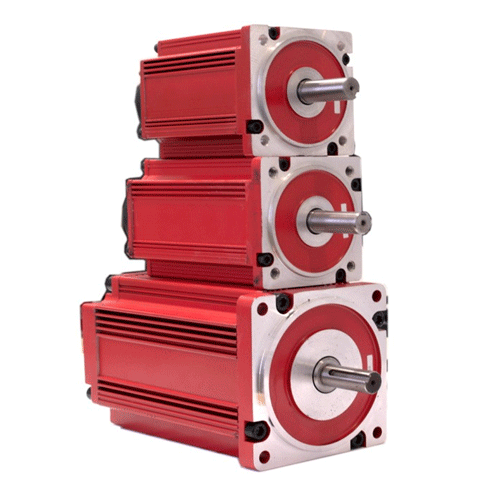

Motor 24 VDC Brushless Motor 1 HP - Continuous Duty Cycle
Duty Cycle Continous
Power Options 120/220 VAC Single Phase

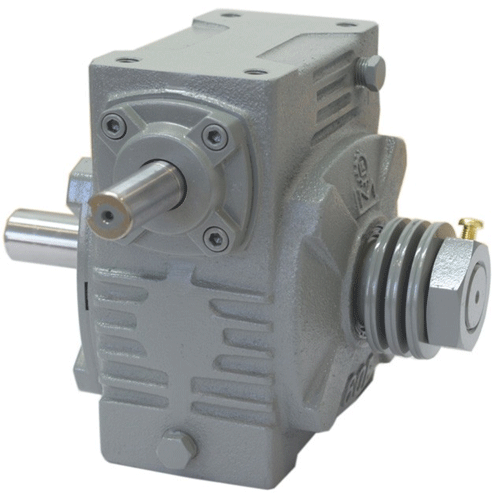

Gear Box Ratio 60:1 with Internal Clutch

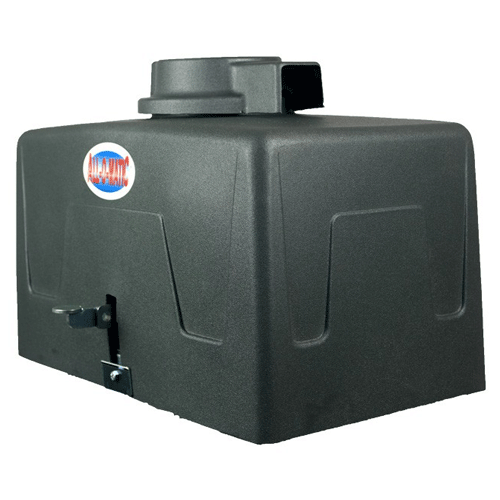

Cover Rotationally Molded – Indestructible

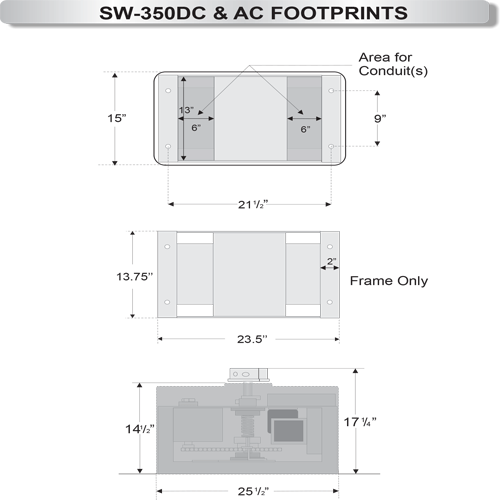

Dimensions W: 14" – L: 17" – H 18"
Maximum Gate Length 22 Feet
Maximum Gate Weight Up to 2000 Lbs
Gate Travel Speed Aprox. 90 degrees travel in 17 sec
Emergency Release OptionsNo-Bind, Band release Arm
Battery Backup Integrated-Capable of up to 250 Cycles Battery: Two 8 Ah Batteries 12VDC
Solar Capabilities Onboard 12VDC or 24VDC Solar Panel Input
