All-O-Matic SW 350 DC Swing Gate Opener 1/2HP

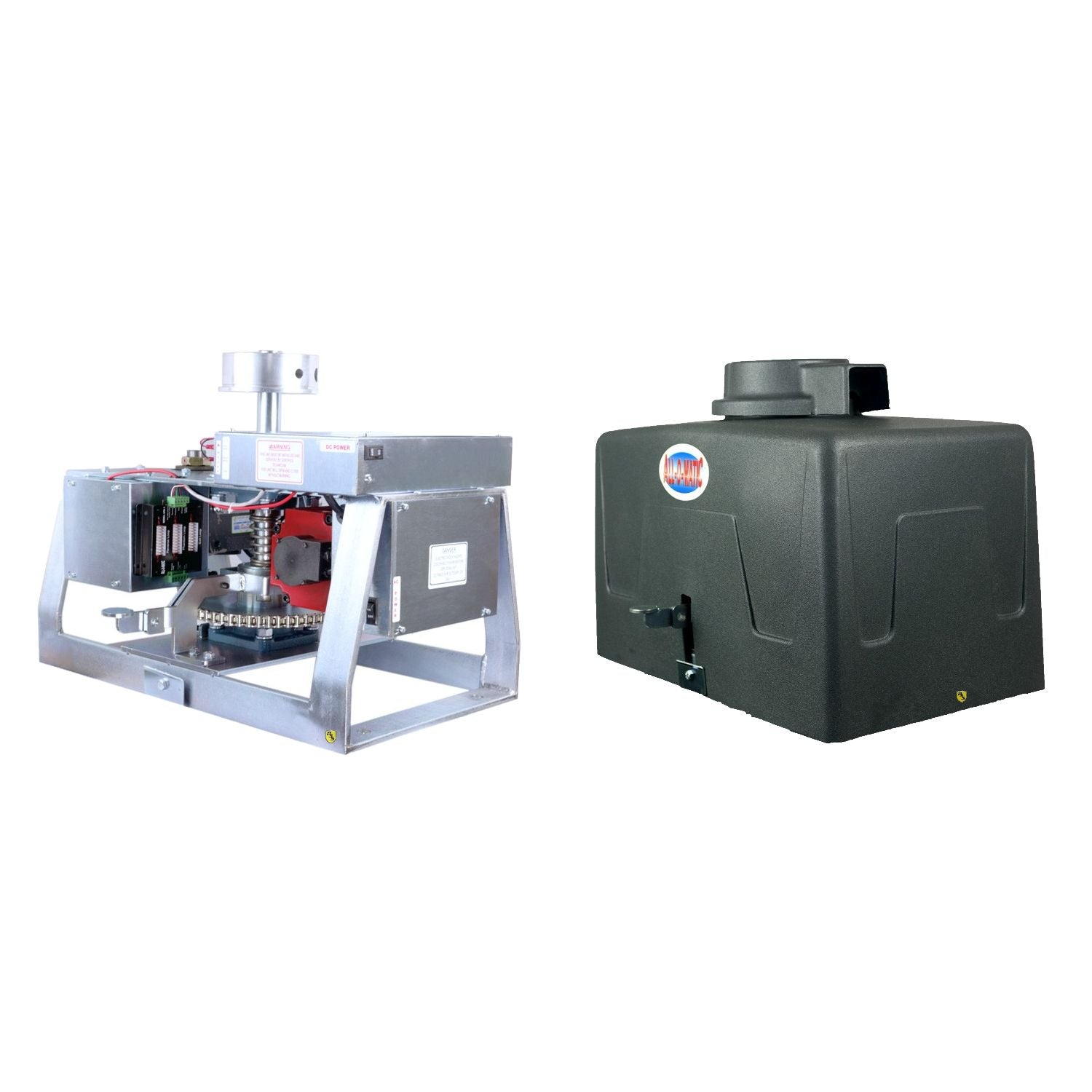

All-O-Matic SW 350 DC Swing Gate Opener

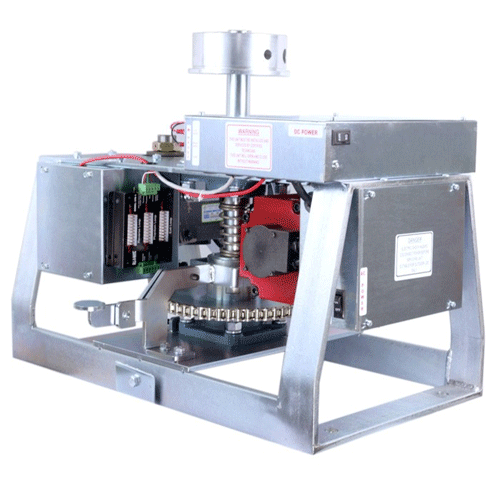

All-O-Matic SW-350 DC Swing Gate Opener - motor construction

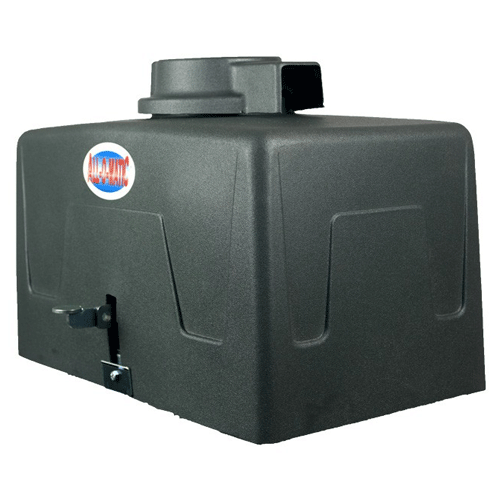

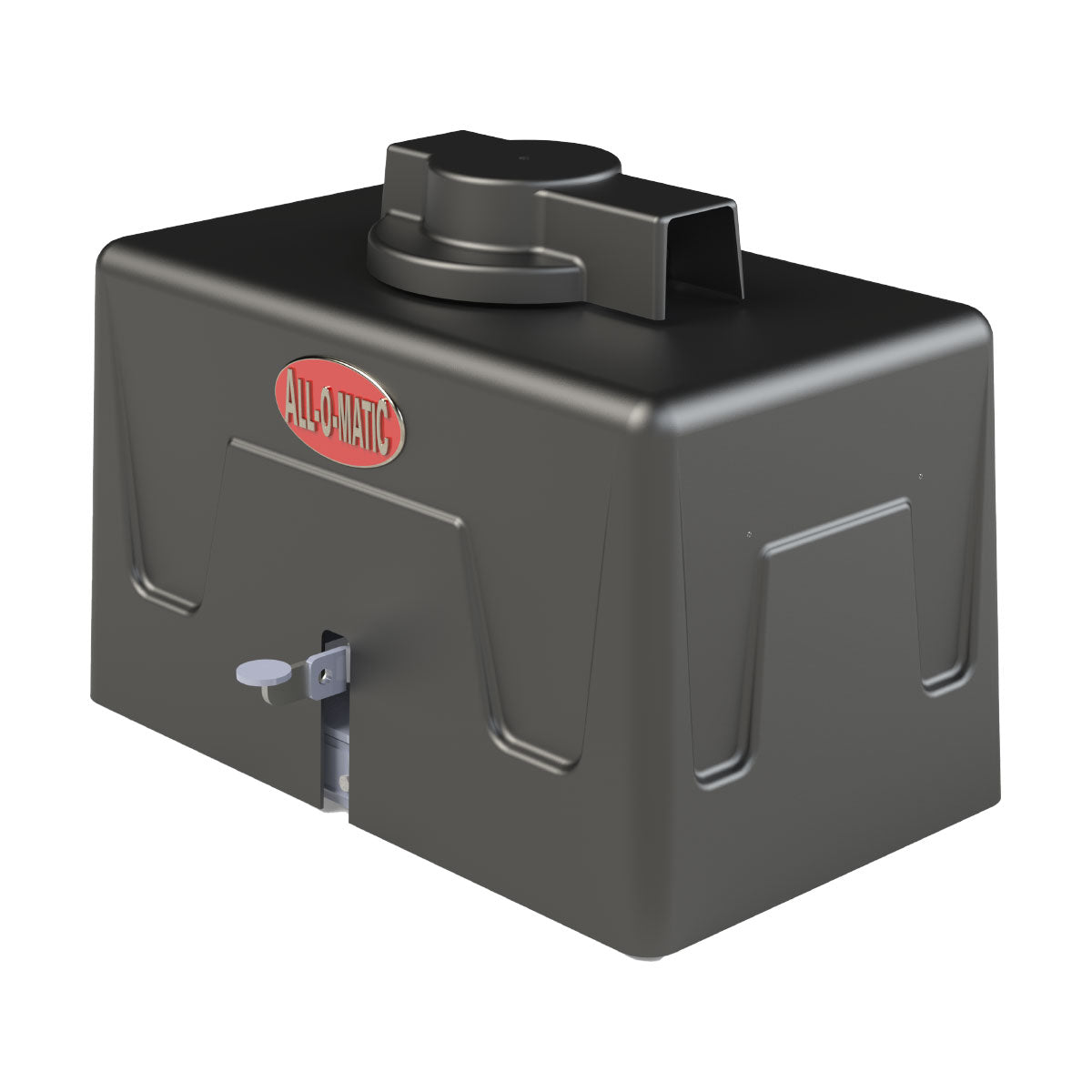

All-O-Matic SW-350 DC Swing Gate Opener - cover

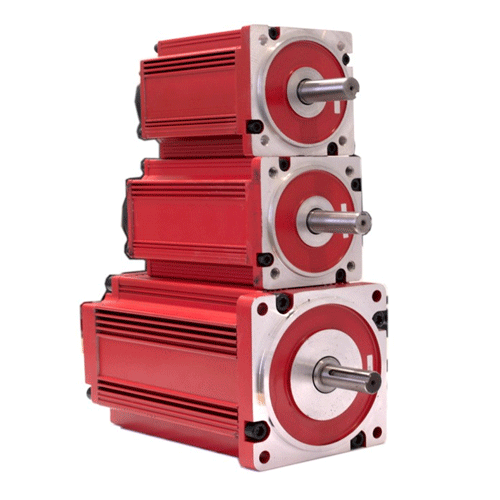

All-O-Matic SW-350 DC Swing Gate Opener - motor parts

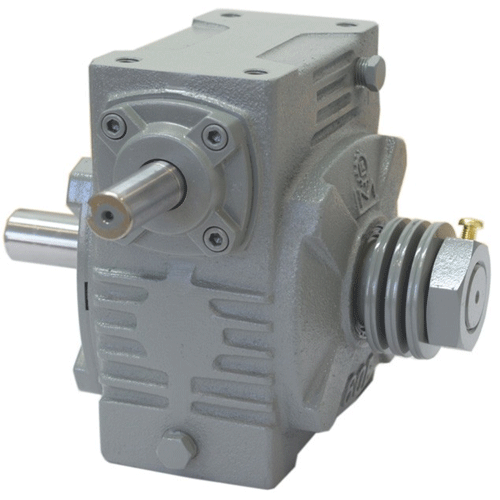

All-O-Matic SW-350 DC Swing Gate Opener - motor parts

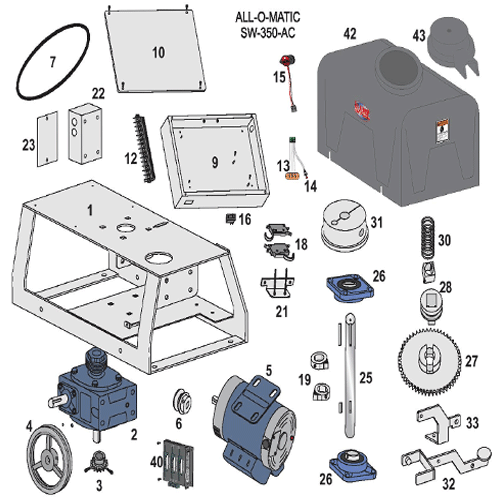

All-O-Matic SW-350 DC Swing Gate Opener - part layout

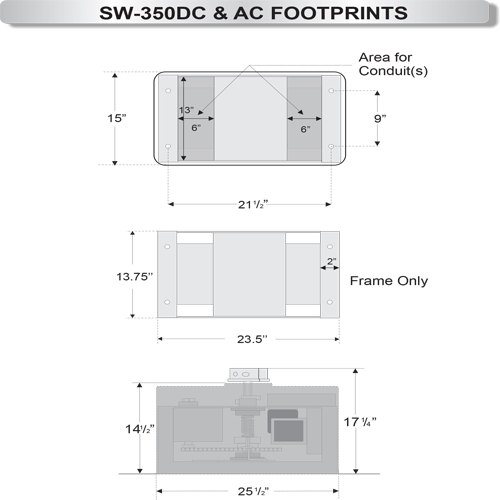

All-O-Matic SW-350 DC Swing Gate Opener - operator dimensions

All-O-Matic SW 350 DC Swing Gate Opener 1/2HP

  • Nationwide shipping
  • Freight | UPS | USpS
  • Secure payments
Regular price $2,399.99
/
Shipping calculated at checkout.

All-O-Matic SW 350 DC Swing Gate Opener

  • Max gate size: 22ft
  • Max gate weight: 2,000 lbs.
  • 1/2 horsepower

The Allomatic SW 350 DC Swing Gate Operator is designed to be installed in heavy traffic commercial and industrial locations, also it is made to operate in extreme weather conditions.  The SW-350 DC Swing Gate Opener is available in both 1HP & 1/2 HP options and can move a gate that is up to 2,000 or 2,500 lbs.  The All-O-Matic Swing Gate Openers have many features that help set them apart from other operators in the industry.  Some of these features are programmable relay and leaf delay, slow start/stop algorithm, and solar power capability. The integrated battery backup offers up to two weeks of uninterrupted operation in the event of a power outage. The brushless DC motors are smooth and quiet but are powerful and durable and require zero maintenance.  This operator has a foot pedal for emergency release, and a loop rack built in.  The Allomatic SW-350 DC Swing Gate Operator has a 5 year commercial, and 7 year residential warranties.

Specs:

2016 UL 325 & UL 991 Compliant
Limited Warranty: 7 Year Residential, 5 Year Commercial
Motor 24 VDC Brushless Motor ½ HP - Continuous Duty Cycle
Duty Cycle Continous
Power Options 120/220 VAC Single Phase
Gear Box Ratio 60:1 with Internal Clutch
Cover Rotationally Molded – Indestructible
Dimensions W: 14" – L: 17" – H 18"
Maximum Gate Length 22 Feet
Maximum Gate Weight Up to 2000 Lbs
Gate Travel Speed Aprox. 90 degrees travel in 17 sec
Emergency Release Options No-Bind, Band release Arm
Battery Backup Integrated-Capable of up to 250 Cycles Battery: Two 8 Ah Batteries 12VDC
Solar Capabilities Onboard 12VDC or 24VDC Solar Panel Input

Manufacturers Warranty:

The Warrantor warrants All SL-100, SL-150, OH-200, SW300 and SW350 Gate Operators. ALL-O-MATIC INC warrants its gate openers for a period of five (5) years in commercial installations, and for a period of seven (7) years in residential installation to be free from defects in circuitry, motor, gear box and workmanship. This warranty applies from the date of purchase to the original owner.Warrantor will repair or, at its option, replace any device which it finds to require service. This device must be sent to the warrantor at the consumers expense. The warrantor will return the repaired or replaced unit to the customer at the consumers expense. Labor charges for dealer service or replacement are the responsibility of the owner. These warranties are in lieu of all other warranties either expressed or implied, and ALL-O-MATIC INC shall not be liable for consequential damage. All implied warranties of merchantability and or fitness for a particular purpose are hereby disclaimed and excluded. This limitation is not valid in jurisdictions which do not allow limitation of incidental or consequential damages or limitation of warranty periods. Caution in order to obtain this policy, please complete the registration card and send it by mail within 30 days of purchasing from ALL-O-MATIC INC. or your INSTALLER. If not registered only a one year warranty on all parts will be provided.

All-O-Matic SW 350 DC Swing Gate Opener

  • Max gate size: 22ft
  • Max gate weight: 2,000 lbs.
  • 1/2 horsepower

The Allomatic SW 350 DC Swing Gate Operator is designed to be installed in heavy traffic commercial and industrial locations, also it is made to operate in extreme weather conditions.  The SW-350 DC Swing Gate Opener is available in both 1HP & 1/2 HP options and can move a gate that is up to 2,000 or 2,500 lbs.  The All-O-Matic Swing Gate Openers have many features that help set them apart from other operators in the industry.  Some of these features are programmable relay and leaf delay, slow start/stop algorithm, and solar power capability. The integrated battery backup offers up to two weeks of uninterrupted operation in the event of a power outage. The brushless DC motors are smooth and quiet but are powerful and durable and require zero maintenance.  This operator has a foot pedal for emergency release, and a loop rack built in.  The Allomatic SW-350 DC Swing Gate Operator has a 5 year commercial, and 7 year residential warranties.

Specs:

2016 UL 325 & UL 991 Compliant
Limited Warranty: 7 Year Residential, 5 Year Commercial
Motor 24 VDC Brushless Motor ½ HP - Continuous Duty Cycle
Duty Cycle Continous
Power Options 120/220 VAC Single Phase
Gear Box Ratio 60:1 with Internal Clutch
Cover Rotationally Molded – Indestructible
Dimensions W: 14" – L: 17" – H 18"
Maximum Gate Length 22 Feet
Maximum Gate Weight Up to 2000 Lbs
Gate Travel Speed Aprox. 90 degrees travel in 17 sec
Emergency Release Options No-Bind, Band release Arm
Battery Backup Integrated-Capable of up to 250 Cycles Battery: Two 8 Ah Batteries 12VDC
Solar Capabilities Onboard 12VDC or 24VDC Solar Panel Input

Manufacturers Warranty:

The Warrantor warrants All SL-100, SL-150, OH-200, SW300 and SW350 Gate Operators. ALL-O-MATIC INC warrants its gate openers for a period of five (5) years in commercial installations, and for a period of seven (7) years in residential installation to be free from defects in circuitry, motor, gear box and workmanship. This warranty applies from the date of purchase to the original owner.Warrantor will repair or, at its option, replace any device which it finds to require service. This device must be sent to the warrantor at the consumers expense. The warrantor will return the repaired or replaced unit to the customer at the consumers expense. Labor charges for dealer service or replacement are the responsibility of the owner. These warranties are in lieu of all other warranties either expressed or implied, and ALL-O-MATIC INC shall not be liable for consequential damage. All implied warranties of merchantability and or fitness for a particular purpose are hereby disclaimed and excluded. This limitation is not valid in jurisdictions which do not allow limitation of incidental or consequential damages or limitation of warranty periods. Caution in order to obtain this policy, please complete the registration card and send it by mail within 30 days of purchasing from ALL-O-MATIC INC. or your INSTALLER. If not registered only a one year warranty on all parts will be provided.
